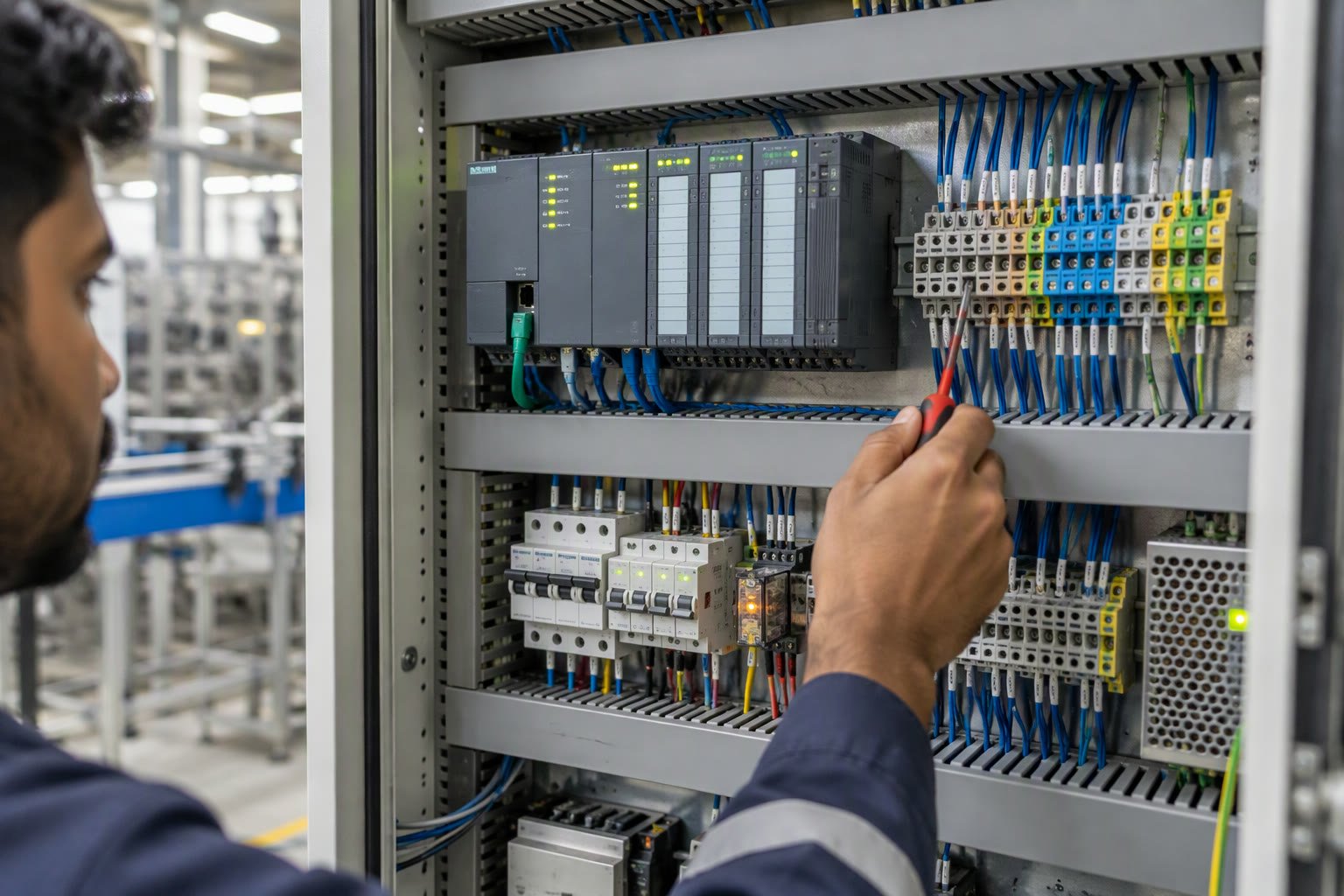

Ladder logic is still how most factory floors are programmed. It survives because an electrician can read a rung without knowing a programming language.
This guide explains the scan cycle, the instructions you use every day, and five worked examples that cover start/stop, latching, timers, counters and a robot handshake. It ends with the mistakes that cause intermittent faults no one can reproduce.
How a PLC runs a ladder program
A PLC repeats a cycle: read the inputs into memory, solve the logic from top to bottom, write the outputs, then handle communication and housekeeping. That whole cycle usually takes a few milliseconds.
- Input scan: copy the physical input states into the input image.
- Program scan: evaluate each rung using the image, not the live input.
- Output scan: write the output image to the physical outputs.
- Housekeeping: diagnostics, communication, watchdogs.
Because the program sees a frozen input image, a pulse shorter than the scan time can be missed entirely. That single fact explains many “the sensor works but the PLC does not see it” problems.
The instructions you actually use
| Element | Symbol in text | Behaviour |
|---|---|---|
| Normally open contact | —| |— | Passes power when the tag is true |
| Normally closed contact | —|/|— | Passes power when the tag is false |
| Output coil | —( )— | Follows the rung condition |
| Set coil | —(S)— | Latches on until reset |
| Reset coil | —(R)— | Unlatches a set coil |
| Timer on delay | TON | Output true after the preset time |
| Timer off delay | TOF | Output stays true for the preset time after input drops |
| Counter up | CTU | Counts rising edges to a preset |
Example 1: start, stop and seal-in
The standard motor start circuit uses a normally open start button, a normally closed stop button, and a contact from the output in parallel with the start button. That parallel contact keeps the rung true after the button is released.
Start Stop Motor
---| |----+----|/|------------------( )---
|
Motor |
---| |----+
Tag names:
Start = I0.0 (momentary NO push button)
Stop = I0.1 (momentary NC push button)
Motor = Q0.0Note the stop button is wired normally closed. A broken wire then stops the machine instead of preventing the stop, which is the safe failure direction. This is why “the stop button reads true when not pressed” is correct, not a wiring error.
Example 2: latch with set and reset
Set and reset coils are common in sequence logic. They are easy to read and easy to abuse: if two rungs set and reset the same tag, the last one in scan order wins, and the result depends on rung position.
PartPresent Reset Gripped
---| |----------|/|----------------------(S)---
ReleaseCmd Gripped
---| |----------------------------------(R)---Keep one owner for each latch. If a tag is set in one place, reset it in one place, and document the sequence. Latches that survive a power cycle are useful for fault memory and dangerous for machine state.
Example 3: conveyor jam detection
A photo-eye at the end of a conveyor should see a gap between parts. If the sensor stays blocked longer than the longest legitimate part takes to pass, the conveyor is jammed.
SensorBlocked TON_1
---| |-----------------------------[TON 5 s]---
TON_1.DN Reset JamFault
---| |-----------|/|----------------( )---
JamFault Conveyor
---|/|-------------------------------( )---Five seconds is a number you derive from the line speed and the longest part, not a guess. Add a short on-delay to the sensor input as well if parts vibrate and flicker the beam.
Example 4: counting parts
A counter counts rising edges. If the sensor stays on while several parts pass, the counter sees one part. Use a one-shot or a short off-delay to create a clean edge for each part, and reset the counter at the start of each batch.
SensorEdge CTU_1
---| |-----------------------------[CTU 100]---
CTU_1.DN BatchReset BatchDone
---| |-----------|/|----------------( )---Counters are retentive on many platforms. After a power cycle the count may resume from the old value, which is either exactly what you want for a batch total or exactly what you do not want for a per-shift count.
Example 5: robot handshake
A robot cell needs a simple, explicit handshake. Every signal must have an owner, a default state and a timeout. The pattern below is the minimum: the PLC requests, the robot acknowledges, the robot finishes, the PLC releases.
PLC to robot:
PartReady PLC has a part in position
CycleRequest PLC asks the robot to start
FaultReset PLC clears a robot fault
Robot to PLC:
RobotReady Robot is powered, homed and in auto
CycleActive Robot has accepted the cycle
CycleComplete Robot finished and is clear
RobotFault Robot has a fault
Interlock:
CycleRequest may only be true when PartReady,
RobotReady, not RobotFault and guard closed.Add a timeout to each wait: if CycleActive does not follow CycleRequest within a few seconds, raise a fault rather than waiting forever. Most “robot and PLC out of sync” problems are a missing timeout and a signal that was missed during a scan.
Safety is not a ladder rung
Emergency stops, guard interlocks and light curtains belong in a safety circuit or a safety-rated controller, hardwired or on a safety PLC with the right category. A standard PLC rung can inform the robot that the guard is closed, but it must not be the only thing that stops hazardous motion.
- E-stop in the safety circuit, not only in software.
- Guard switches wired to a safety relay or safety input.
- Standard PLC reads status for sequencing and diagnostics.
- Safety functions tested and recorded, not assumed.
- Any bypass is temporary, logged and removed before production.
Ladder versus structured text
Ladder is best for interlocking and discrete sequences that maintenance staff will read. Structured text is better for calculations, loops, recipe handling and string work. Most modern PLCs allow both in one project, and mixing them is normal: ladder for the machine sequence, structured text for scaling and data handling.
Choose by who will troubleshoot it at 2 a.m. If a technician with a laptop needs to find why a conveyor stopped, ladder wins. If the logic is a 200-line calculation, ladder becomes unreadable and structured text is safer.
Common mistakes
| Mistake | Effect | Fix |
|---|---|---|
| Same coil in two rungs | Last rung wins, output flickers | One coil per tag |
| Relying on rung order | Logic breaks when rungs move | Use intermediate tags |
| No debounce | Counts and faults multiply | Add a timer filter |
| Short pulses | Missed between scans | Latch in hardware or use interrupts |
| Retentive bits left on | Machine restarts mid-sequence | Initialise state on first scan |
| No timeouts | Sequence hangs silently | Timer per wait step |
